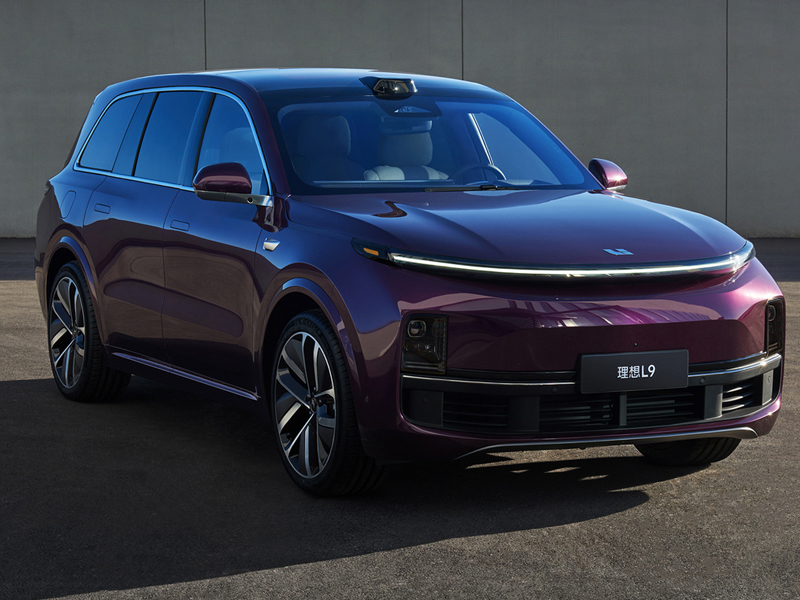

Ideal L9
The Ideal L9 is a flagship full-size SUV, designed with 6 seats for ultimate comfort for family users; Ideal Automobile's self-developed flagship extended range electric and chassis system provides excellent driving comfort, with a comprehensive range of 1315 kilometers for CLTC and 1100 kilometers for WLTC
Learn more about Ideal L9
Submit

Model features

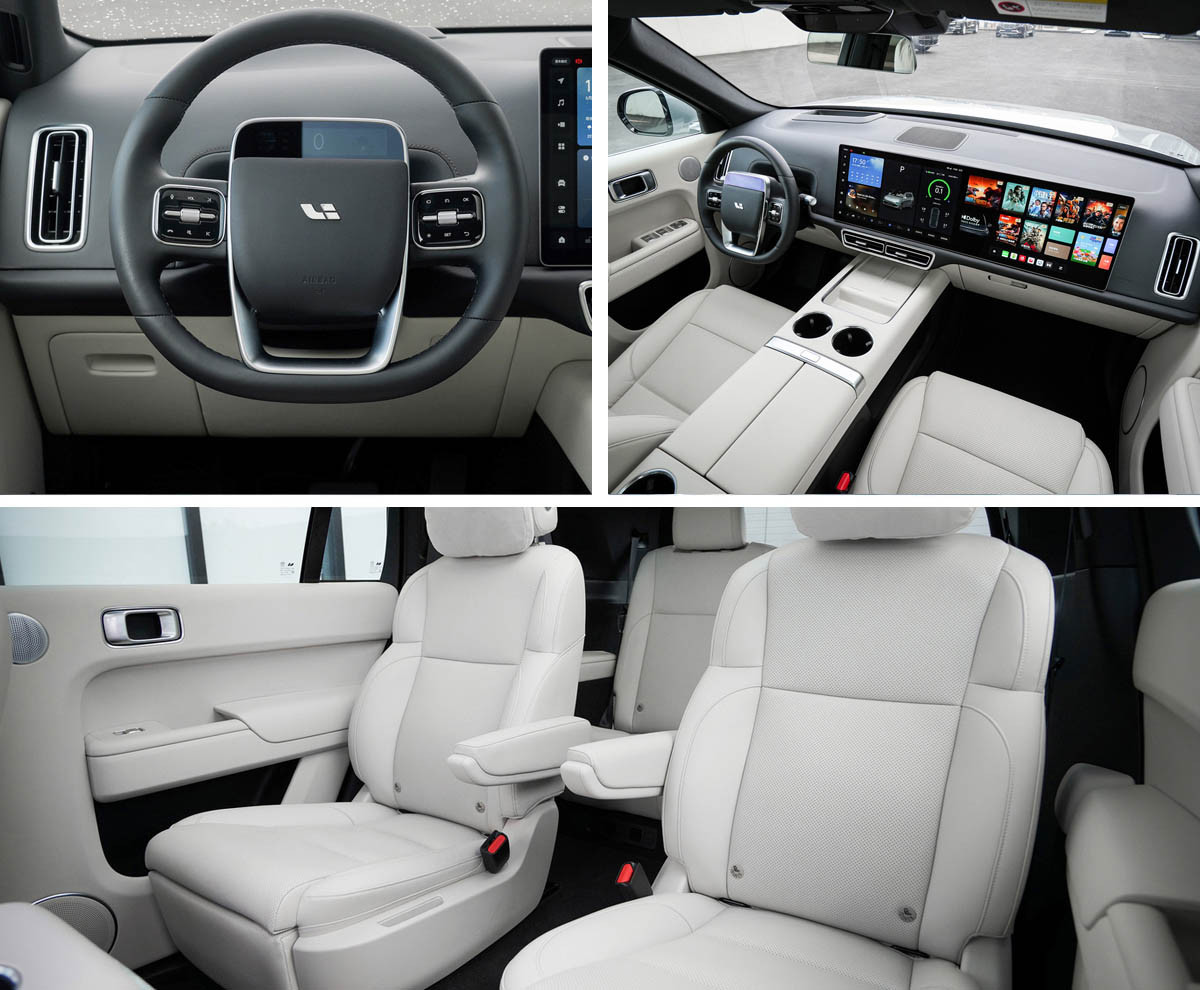

The fully self-developed flagship intelligent driving system - Ideal AD Max and the highest level of body safety, protecting every family member; The innovative five screen three-dimensional interactive intelligent cockpit elevates the driving, audio-visual, and entertainment experience of smart electric vehicles to a new level.

As a global intelligent flagship SUV designed for families, the Ideal L9 boasts flagship level space and comfort. The body dimensions are: 5218 millimeters in length, 1998 millimeters in width, 1800 millimeters in height, and 3105 millimeters in wheelbase. Through careful design of the vehicle structure and interior space, the interior space of the Ideal L9 surpasses that of mainstream SUVs in its class, and even surpasses some full-size MPVs in the total space of the second row, third row, and trunk, truly allowing every interior member to have an extremely spacious and comfortable space.




LevelLarge SUVLarge SUV
Energy typeAdd programAdd program
Time to market2023.082022.06
WLTC pure electric range (km)175175
CLTC pure electric range (km)215215
Maximum power (kW)330330
Maximum torque (N · m)--
EngineExtended range 154 horsepowerExtended range 154 horsepower
TransmissionElectric vehicle single speed gearboxElectric vehicle single speed gearbox
L * W * H (mm)5218*1998*18005218*1998*1800
Body structure5-door 6-seater SUV5-door 6-seater SUV
Maximum speed (km/h)180180
Official 0-100km/h acceleration (s)5.35.3
Actual 0-100km/h acceleration (s)-5.31
WLTC comprehensive fuel consumption (L/100km)0.860.86
Minimum State of Charge Fuel Consumption (L/100km)7.87.8
Electricity equivalent fuel consumption (L/100km)2.512.51
Actual fuel consumption (L/100km)-7.1
Vehicle warranty5 years or 100000 kilometers5 years or 100000 kilometers
First Car Owner Warranty Policy--


Length (mm)52185218
Width (mm)19981998
Height (mm)18001800
Wheelbase (mm)31053105
Front wheelbase (mm)17251725
Rear wheelbase (mm)17411741
Approach angle (°)1919
Departure angle (°)2121
Body structureSUVSUV
Door opening methodside hung doorside hung door
Number of car doors55
Seating capacity66
Fuel tank volume (L)6565
Rear trunk volume (L)332-1191332-1191
Curb weight (kg)25202520
Maximum Full Load Mass (kg)31203120


Engine modelL2E15ML2E15M
Displacement (mL)14961496
Air intake formTurboTurbo
Engine layoutTransverseTransverse
Number of cylinders44
Valve trainDOHCDOHC
Fuel formAdd programAdd program
ROZNo.95No.95
Fuel supply methodDirect injectionDirect injection
Cylinder head materialaluminum alloyaluminum alloy
Cylinder body materialaluminum alloyaluminum alloy


Motor typePermanent magnet/synchronousPermanent magnet/synchronous
Total power of electric motor (kW)330330
Total torque of electric motor (N · m)620620
Maximum power of front motor (kW)130130
Maximum torque of front motor (N · m)220220
Maximum power of rear motor (kW)200200
Maximum torque of rear motor (N · m)400400
Number of driving motorsDual motorDual motor
Motor layoutFront+RearFront+Rear
TypeTernary lithium batteryTernary lithium battery
Battery cooling methodLiquid coolingLiquid cooling
WLTC pure electric range (km)175175
CLTC pure electric range (km)215215
Battery energy (kWh)42.642.6
Power consumption per 100 kilometers (kWh/100km)22.222.2
Battery pack warranty8 years or 160000 kilometers8 years or 160000 kilometers
